5 pin 40A 12v Relay with Socket Wire. High Quality
$5.80
SKU
Brand new heavy duty relays
Auction for one set
Brand new and high quality
5 pin single pole change over relay

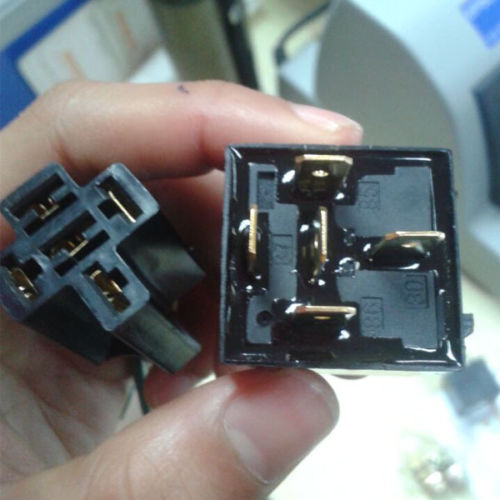

Features a mounting tab and standard 5 pin layout that accepts female spade terminals
Main contacts are rated at a maximum of 40 Amps at 12 V DC
Relay is switched with 9-15 volt DC and has a current draw of approx 150 mA
Contact rating: 40 A / 30 A
Coil nominal voltage: 12 V
Coil resistance: 80 Ohms +/- 10%
Nominal current: 150 mA
Max. pickup voltage: 7.8 V
Min. drop out voltage: 1.2 V
Contact material: silver-cadmium oxide as standard
Operation time: 10 ms Max.
Release time: 10 ms Max.
Temperature range: -40°C to 85°C
Suitable for car alarm fitters, audio installers, auto electricians, and DIY use.
Outline Dimension(LWH) L 29 x W 29 x H 26 mounting tab 16 mm
General purpose,direct replacement for Hella 4RD 388-46 12V 40A as well as many others.
Package :

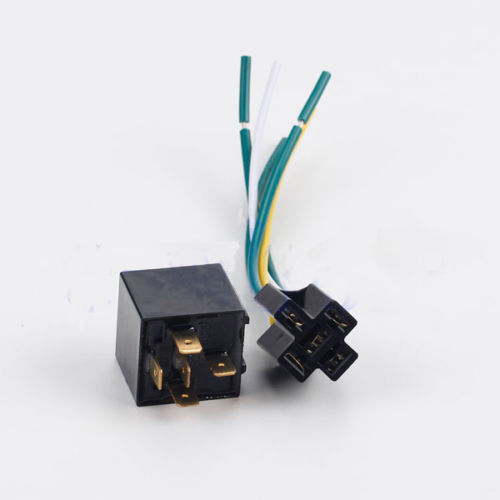

1 x 40A replay (5Pin)

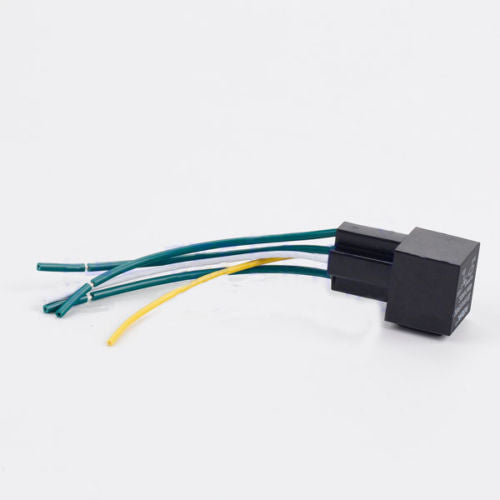

1X Relay Socket Wire
CHECK OUT OUR OTHER AUCTIONS FOR MORE DEAL!!!
Professional Installation available (extra charge)
**GST Invoice Will Supply for Sale If you require**
Pick up and view the product at Pepsi Auto, Onehunga , Auckland.
Showroom/Workshop during Business hours Monday to Friday, 9 am to 5 pm, Saturday 9 am to 1 pm
